pH control system REGA-pH/EV

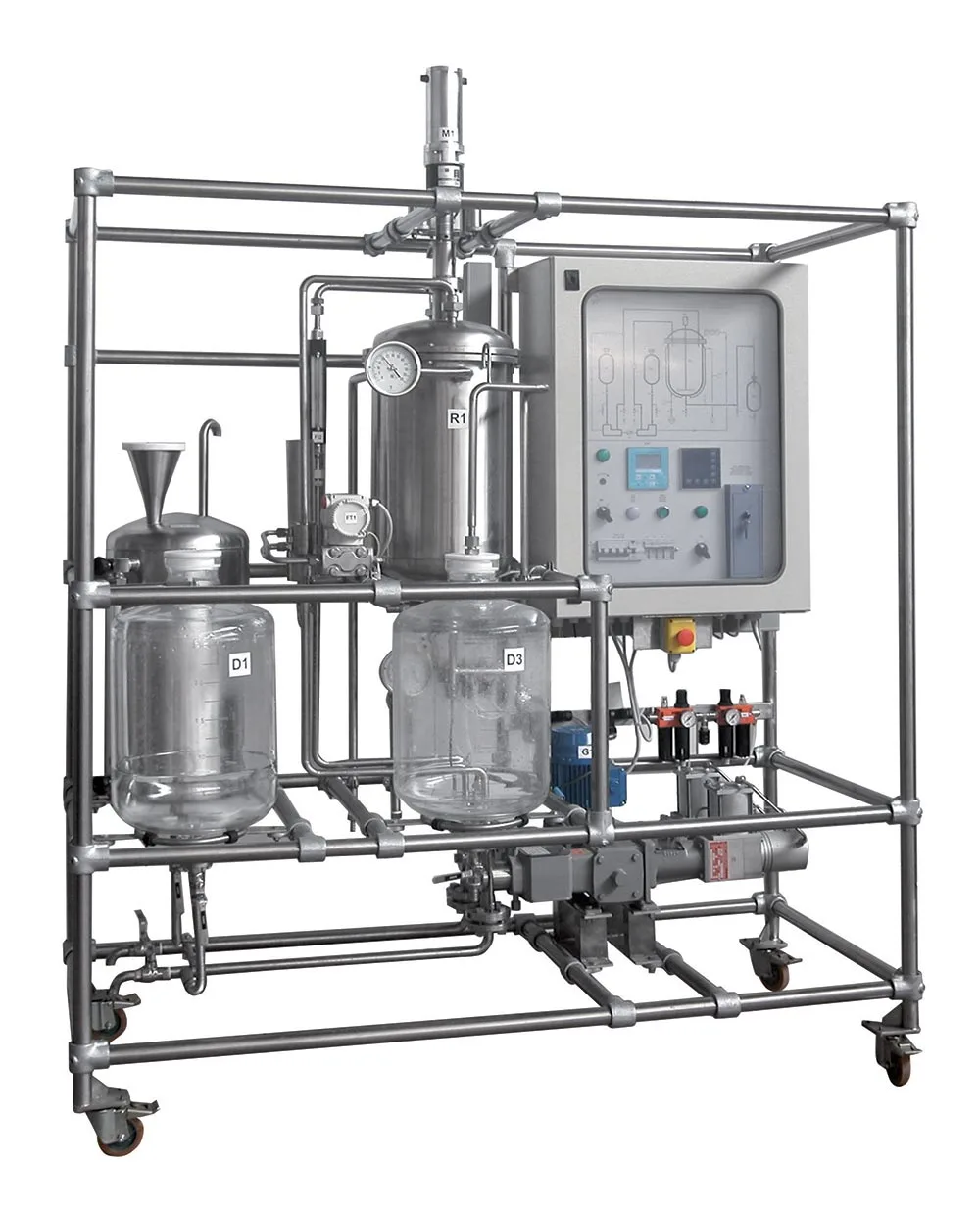

pH control system Mod. REGA-pH/EV is designed for teaching and experimental analysis of pH control processes. The system includes a stirred reactor that is filled with an acidic solution via a dosing pump. By controlling the flow of a basic solution into the reactor via another dosing pump, the pH level inside the reactor can be adjusted. Using SCADA software, users can monitor and control the process in real time from a computer.

Technical characteristics:

• Construction: AISI 304 stainless steel frame with wheels;
• Capacities:
  • 3 borosilicate glass containers of 25 l each;
  • AISI 316 stainless steel reactor with agitator and 15 l capacity;
• pH measurement system:
  • Microprocessor pH indicator with 4–20 mA output signal;
  • Measuring electrode;
• Dosing pumps:
  • Double-casing pump made of AISI 316 stainless steel with pneumatic drive (0.2–1 bar);
• Control equipment:
  • Electropneumatic transducers (4–20 mA / 0.2–1 bar);
  • Electronic PID controller with four-line LCD display and serial communication card;
• Pipelines and valves: AISI 304 and 316 stainless steel;
• Protective devices: Emergency button;
• Electrical panel: IP55 class, compliant with EC requirements, with synoptic diagram and fuse (ELCB);
• SCADA software:
  • Allows monitoring and control of ON-OFF and analog signals from the PID controller;
  • Real-time and historical data analysis.

Technical data:

• Power supply: 400 Vac, 50 Hz, three-phase, 2 kVA (other voltages and frequencies available upon request);
• Dimensions: 1700 × 800 × 2200 mm;
• Weight: 310 kg.

Educational program:

• Analysis of PID control methods;
• Study of process characteristics and reaction analysis;
• Dead-time setting;
• Controller tuning techniques;
• System monitoring via SCADA program;
• pH meter calibration.
