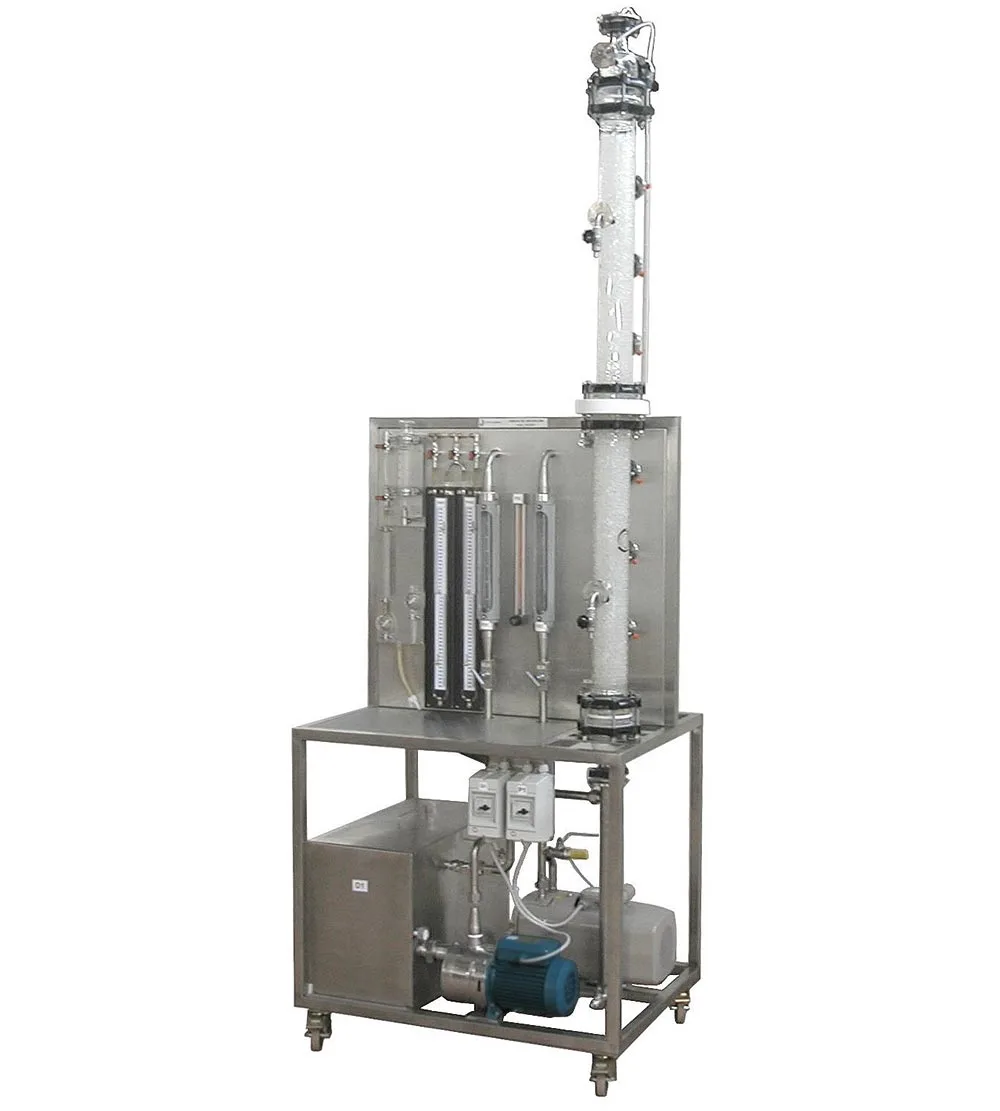

Absorption pilot stand UAD/EV is intended for demonstration and practical training of the principles of gas absorption into a liquid. This stand includes a vertical absorption column made of borosilicate glass filled with Raschig rings. The column is mounted on an AISI 304 stainless steel frame with casters, ensuring mobility. The liquid used in the process is supplied from a stainless steel tank to the top of the column via an AISI 316 stainless steel centrifugal pump, allowing the liquid to flow through the column and return to the tank.
Main features:
- Column: borosilicate glass DN80, consisting of two 750 mm sections, filled with 10 mm Raschig rings.
- Power tank: capacity 50 liters, made of AISI 304 stainless steel.
- Centrifugal pump: Qmax = 28 l/min, Hmax = 1 bar, AISI 316 stainless steel construction.
- Compressor: rotary, Qmax = 10 m³/h, Pmax = 0.8 bar.
- Flow meters:
- For water: range 60–600 l/h.
- CO2: range 2–22 Nl/min.
- For air: range 20–200 Nl/min.
- Pressure gauges: 2 differential U-shaped pressure gauges, range 0–500 mm H2O.
- Gas analysis equipment: Hempl's apparatus.
Training opportunities:
- Study of the basics of gas absorption into a liquid through a packed column.
- Demonstration of quantitative analysis methods for gas and liquid phases.
- Mass balance analysis for an absorption column.
- Determination of mass transfer coefficient.
- Investigation of hydrodynamic properties of a packed column.
- Determination of flood and load points.
Technical data:
- Dimensions: 650 × 1000 × 3200 mm
- Weight: 130 kg
- Power supply: 230 Vac, 50 Hz, single-phase, 2 kVA (other voltage and frequency can be ordered).
